Cortizo Aluminum Sliding Systems
Features
PermeabilityUw = 1,2 (W/m²K)
Please consult for glass thickness and dimensions.
Maximum Sound Insulation
Rw=40 dB
Air impermeability
(EN 12207) CLASS 4
Water tightness
(EN 12208) CLASS 7A
Wind load resistance
(EN 12210) CLASS C5
CSTB Laboratory DTA Certificate
Avis technique
Test reference
1,80 x 2,20 m / 2 sash
Cortizo Sliding Systems

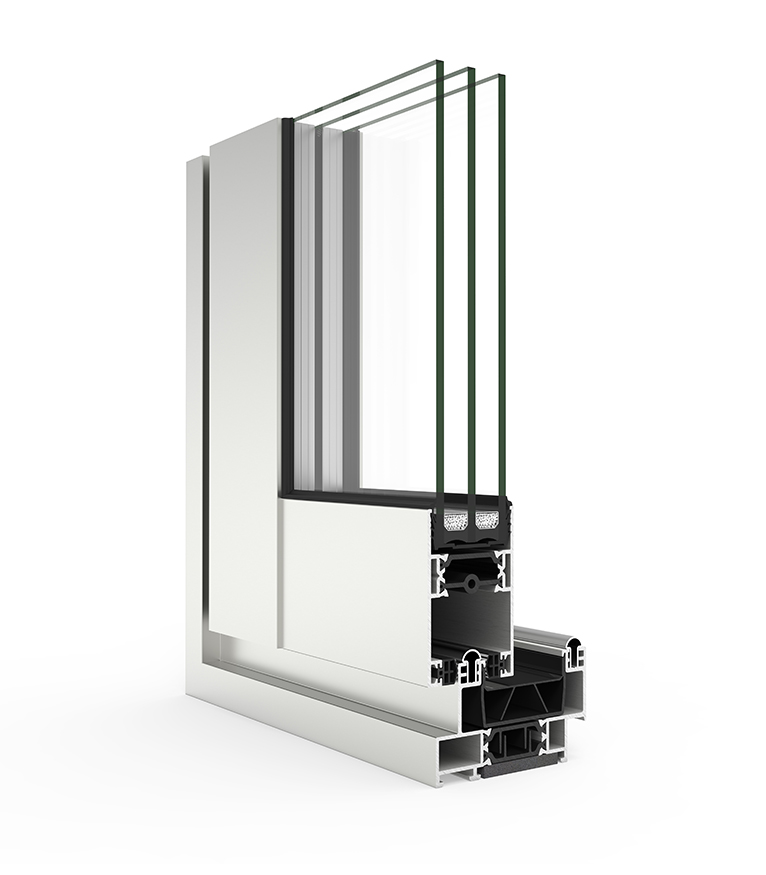

4900 HEAT INSULATED SLIDING SYSTEM
Industry-leading thermal insulation meets sleek functionality in our advanced sliding system:
Key Features:
✔ Dual sash joint options:
110mm standard profiles (robust performance)
50mm ultra-slim profiles (minimalist aesthetics)
✔ Extra-large sash dimensions
Ideal for expansive glazing areas
Uncompromised transparency
✔ Ultra-smooth stainless steel track system
Zero deformation under regular use
Maintenance-free operation
| Maximum glass thickness : | 36 mm |
| Types of Openings | 2 3 4 & 6 Panel Sliding Window
3 rail |

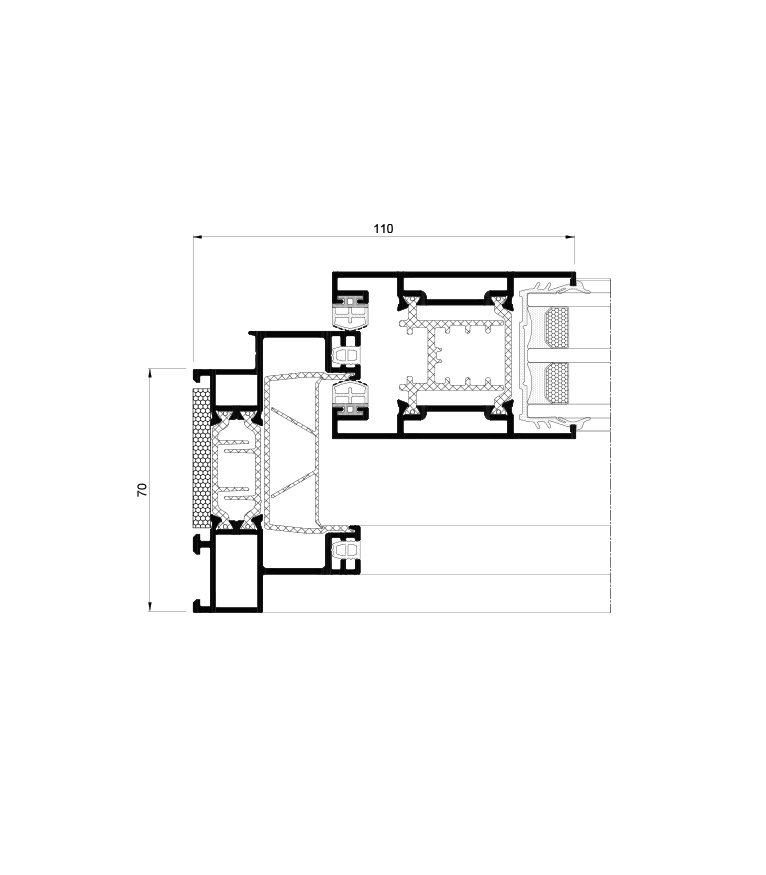

| Sections: | Case 70 mm - 3 rail 126 mm - Sash 48 mm |
| Profile Thickness: | Window 1,6 mm |
| Polyamide Barrier Width | 34 mm |
| Maximum Dimensions / Sash: | Width (L) = 2200 mm Height (H) = 3000 mm |
| Maximum Weight / Sash: | 240 Kg |
- It is possible to produce two colors.
- Coloured powder paint (RAL, moire and sable)
- Wood look powder coating
- Anti-bacterial powder coating
- Eloksal
Applications
GÜRSOYLAR · Minimalseries
Cortizo 4900 Heat-Insulated Sliding System
