Rehau PVC Window Systems

Profile Width
80 mm center gasket
Maximum glass thickness
56 mm or 72 mm facade wing
View widths frame/wing
106 mm ila 173 mm
Heat insulation Uf (EN 12412-2 / EN 10077-2)
ARTEVO up to 0.98 W/m²K
ARTEVO max up to 0.79 W/m²K
Sound insulation Rw (EN ISO 717-1)
up to 48 dB
Theft resistance (EN 1627)
Up to RC 3 class
Wind resistance (EN 12210)
Up to class B5
Sealing against heavy rain (EN 12208)
Up to class 9A
Air permeability (EN 12207)
Up to 4th grade

Product Catalog

Rehau Euro Design 70 Window Rehau Synego Window Rehau Geneo Window Rehau Artevo Window Rehau Synego Sliding System Rehau Geneo Sliding System Rehau Shutter

REHAU ARTEVO WINDOW

The revolutionary new ARTEVO premium window system with unparalleled 360° performance

We proudly present the new generation: ARTEVO
The combination of the proven high-tech material RAU-FIPRO X and REHAU's outstanding technological expertise enables the full potential of the material to be used.

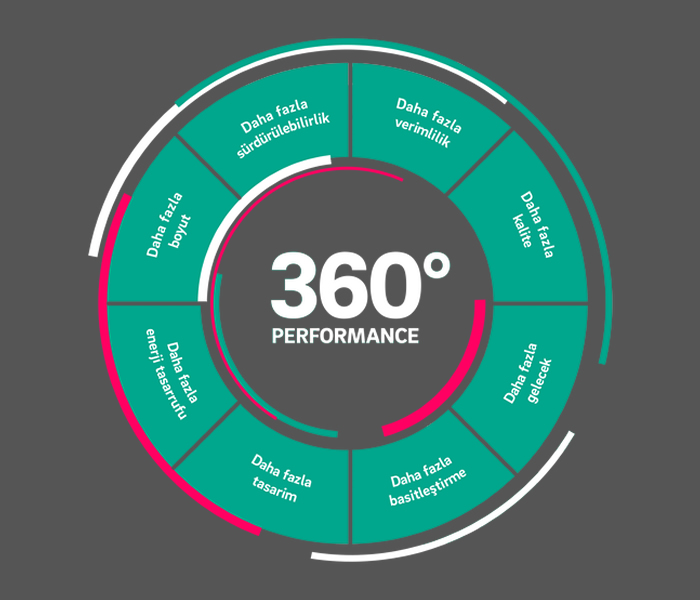

ARTEVO - the most efficient use of materials with 360° Performance Superiority in every dimension. A superior system in every respect.

More performance and stability	Thanks to the optimised use of the high-performance RAU-FIPRO X material combined with REHAU’s outstanding technological expertise, ARTEVO completely redefines the limits of what is possible.
More strength and thermal insulation	Design, comfort, safety and sustainability on a new level. Uf up to 0.98 W/m²K in the standard version without reinforcement plate.
Production efficiency	Elements with a wing height of up to 2.40 m are possible without additional structural measures.
Cubic design	Symmetrical, cubic and with extremely thin protrusions: Small radii and angles ensure a modern and contemporary design.
Slim middle section	Narrowest model: 118 mm, Standard: 156 mm
Unique sustainability	REHAU profiles already contain up to 75% recycled material.
Lighter without reinforcement sheet	Window elements without reinforcement sheet are up to 40% lighter than classic PVC-U windows.
80 mm strategy platform	Common system platform with REHAU SYNEGO AD and MD. This means, for example, that additional profiles, thresholds and glazing beads are the same for all systems.
Heavy rain impermeability:	9A (EN 12208)

No reinforcement sheet up to sash heights of 2.60 m.
You can design a large part of your window production without reinforcement sheet. This saves time, money and storage space and also optimizes thermal insulation.
Optimized for bonding technology.
The lower glazing bead base facilitates the retraction of the adhesive nozzle.
Efficiency thanks to universal armoring
Less complexity in planning and manufacturing window solutions with reinforcement sheet. This keeps your warehouse lean.
Less swarf
This results in a faster throughput time for the handle drilling process, less wear and tear and therefore a longer tool life. In addition, of course, no backing plate swarf is generated and therefore no cleaning is required.

Maximum height 2.80 m
The integration of the fibre composite material into the entire profile section, together with the reinforcement sheet reinforcement and bonding technology, enables sash heights of up to 2.80 m in both white and coloured finishes.
Maximum glass thickness 56 mm / 72 mm
Glass up to 56 mm thick can be used in the offset sash and frame. This means that glass with optimised sound and heat insulation values can be used. The maximum section thickness in the flush-mounted sash has been increased to 72 mm.
Absolute design freedom
Whether in wood or aluminium look. Foil coating, painting or aluminium coating: ARTEVO offers you maximum design possibilities and dimensions.
Flush-mounted sash
The return of the facade sash-mounted window sash! It provides an aesthetically neat and closed appearance, while functionally extending the maximum pane thickness to 72 mm.
Efficiency through simplification
Universal reinforcement for sashes including front panel sash, frame, front panel profile and false sash.
This means reinforcement for a wide range of applications and therefore less storage and production effort.
