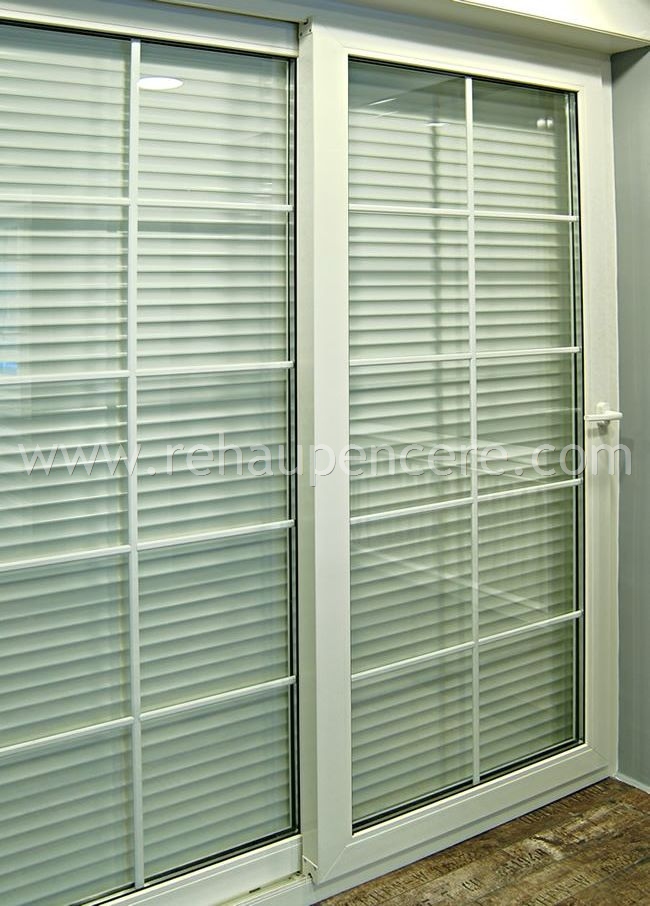

Simple Sliding Systems
These are systems applied only with sliding profiles.
Two wings move on the rail parallel to each other.
However, since insulation is provided only with hair wicks in this system, it is a weak system in terms of insulation.
It can be applied up to 1500 mm horizontally and 2400 mm vertically.

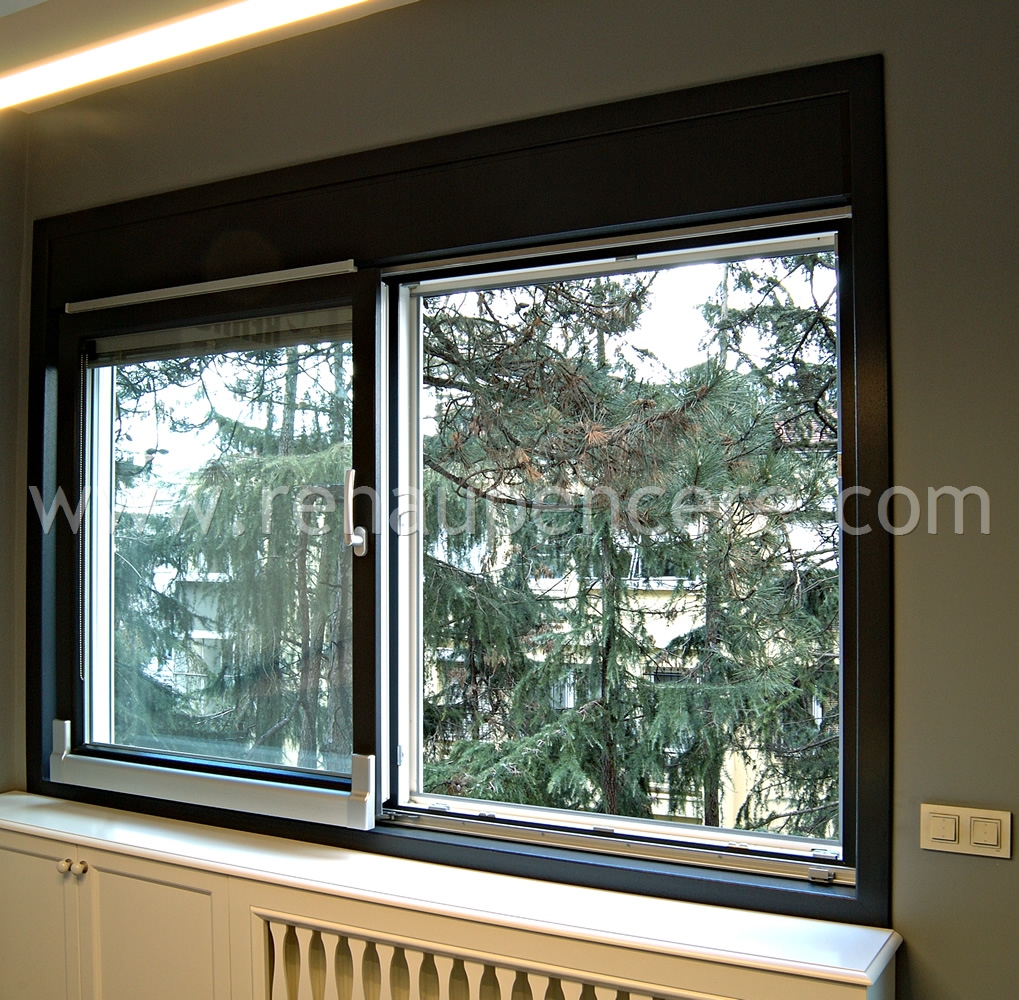

Semi-Automatic VW Sliding Systems
It can be applied in Synego – Artevo – Euro 70 – Geneo series.
It is the safest and most insulated system among sliding systems.
In this system, the wing can be made in the dimensions of 640 mm – 1600 mm horizontally and 700 mm – 2400 mm vertically.
Carrying capacity is 130 kg.
It can be applied up to 1500 mm horizontally and 2400 mm vertically.
Fully Automatic VW Sliding Systems
It can be applied in Synego – Artevo – Euro 70 – Geneo series.
With the first movement of the window handle, the sash is in a tilted position for ventilation, with the second movement it is completely opened and separated from the frame.
This system is called fully automatic because it is opened and closed only with the window handle. Intervention to the sash while the arm is moving causes the system to lock.
In this system, the sash can be made in the dimensions of 720 mm – 1850 mm horizontally and 820 mm – 2400 mm vertically.

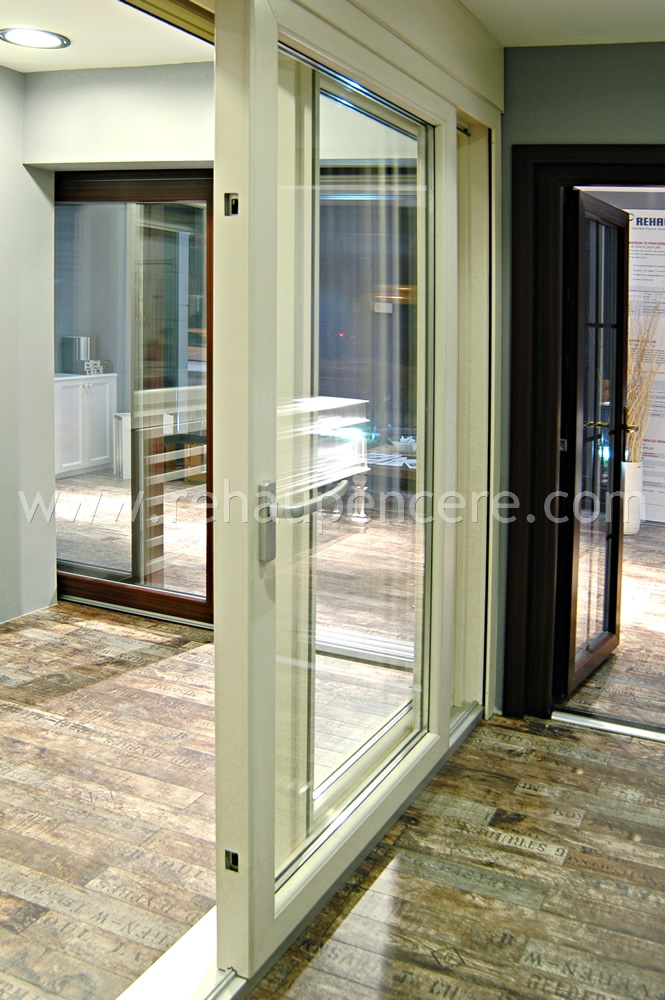

Hebeschiebe Sliding Systems
The frame thickness is 190 mm, so a minimum of 20 cm wall thickness is required in the application area.
The carrying capacity for one wing is 300 kg, and wings can be made up to 3000 mm horizontally and 2765 mm vertically.
It works extremely quietly and easily thanks to the specially designed carrier cart, and the wing can be fixed at the desired point.
It can be applied in areas up to 12000 mm wide in a 4-wing system.

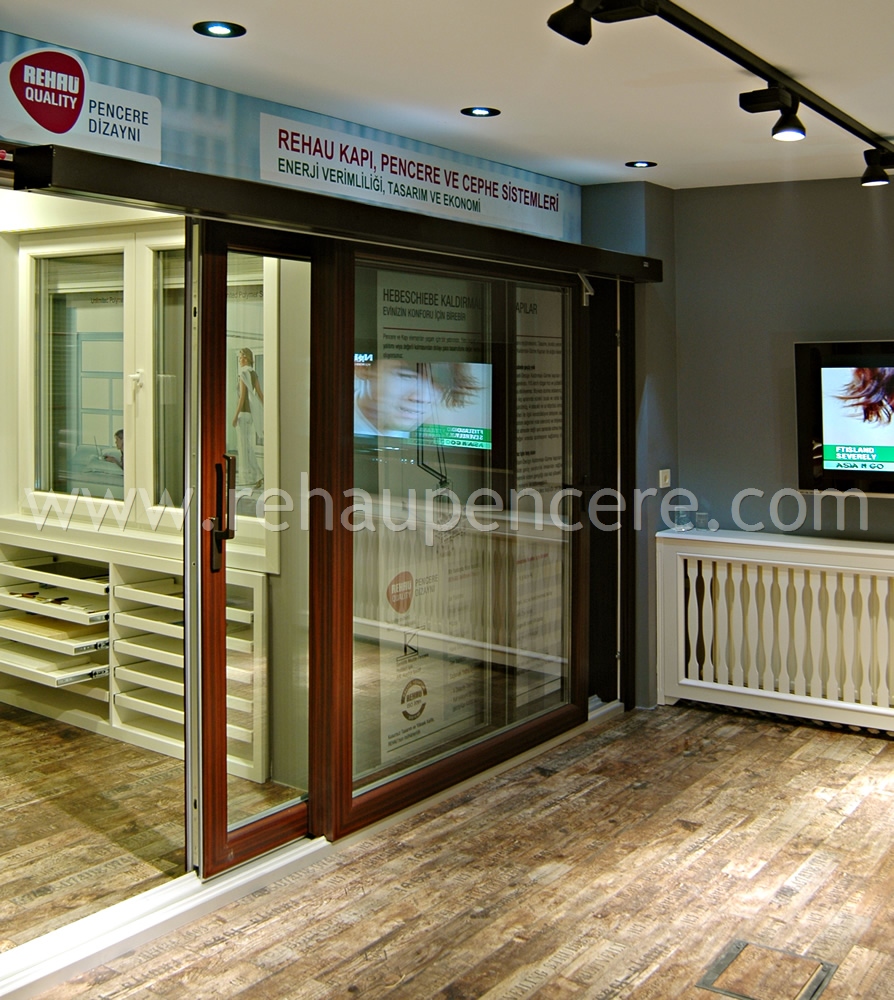

Automatic Hebeschiebe Sliding Systems
The frame thickness is 190 mm, so a minimum of 20 cm wall thickness is required in the application area.
The carrying capacity for one wing is 300 kg, and wings can be made up to 3000 mm horizontally and 2765 mm vertically.
It works extremely quietly and easily thanks to the specially designed carrier cart, and the wing can be fixed at the desired point.
It can be applied in areas up to 12000 mm wide in a 4-wing system.
The automation system developed for this system is added and it becomes a fully automatic remote controlled and obstacle detection sliding system.
